Overview
A split bolt is a small part with a big job: it clamps two conductors together, or taps a branch off a running line, and has to hold that joint for years without loosening or overheating. Empire Alloys manufactures split bolt wire connectors in copper alloy, with a slotted bolt body, a pressure bar that seats between the conductors and a hex nut that lets the installer torque the joint with a standard socket or spanner.
Because the company melts and extrudes its own copper alloys at Dared, Jamnagar, the alloy, forging and machining of every split bolt stay under one roof. That control is why the same plant can supply a standard MM² size chart, UL-pattern split bolts and STR-SOL series parts, or a special body length for a customer’s conductor combination.
The extra-long body on the MM² series lets one or two taps be connected to a single run conductor, and the wide wire range of each size reduces the number of part numbers a contractor or utility needs to stock.
Types and variants we make
MM² split bolts (ESBC)
Metric conductor sizing from 6 mm² to 300 mm²; full chart below.
UL-pattern split bolts
Split bolts in the pattern used for North American specifications; ask for the size list.
STR-SOL split bolts
Sized by stranded and solid conductor range, offered copper-plated or tin-plated.
Extra stud & extra pressure pad
Versions with an additional stud or pressure pad for wider conductor combinations.
Round split bolts
Round-head body pattern for compact installations.
Australian-standard pattern
Split bolts made to the Australian-pattern design on request.
MM² split bolt size chart (ESBC series)
Copper-alloy split bolts sized by conductor cross-section. Dimensions in mm; A = bolt across flats, D = nut across flats.
| Product code | Conductor | A (bolt A/F) | B | C | D (nut A/F) |
|---|---|---|---|---|---|
| ESBC-6 | 6 mm² | 10 | 24 | 3.2 | 12.7 |
| ESBC-10 | 10 mm² | 12.7 | 27.3 | 5.5 | 19 |
| ESBC-16 | 16 mm² | 12.7 | 24.3 | 5.5 | 19 |
| ESBC-25 | 25 mm² | 15 | 28.9 | 6.9 | 19 |
| ESBC-35 | 35 mm² | 18 | 34.8 | 8.1 | 24 |
| ESBC-50 | 50 mm² | 23 | 42 | 9.6 | 27.3 |
| ESBC-70 | 70 mm² | 23 | 47.5 | 11.17 | 30 |
| ESBC-95 | 95 mm² | 25.4 | 53 | 14 | 34.3 |
| ESBC-120 | 120 mm² | 30 | 59 | 16 | 35.55 |
| ESBC-150 | 150 mm² | 30 | 59 | 16 | 35.55 |
| ESBC-185 | 185 mm² | 32 | 59 | 18 | 38.1 |
| ESBC-240 | 240 mm² | 39 | 76.2 | 22.2 | 48.25 |
| ESBC-300 | 300 mm² | 43 | 76.2 | 23 | 52.45 |
Specifications
| Material | High-strength copper alloy |
|---|---|
| Conductor range | 6 mm² to 300 mm² (MM² series); stranded/solid ranges for STR-SOL |
| Finish | Natural, tin plated or as required |
| Nut | Hex nut for socket, box or open-end spanner |
| Customisation | Body length, plating, marking and packing to customer drawing |
Values shown are typical capabilities. Final dimensions, threads, tolerances and finish are confirmed against your drawing or sample at quotation stage.
Why buyers specify these parts from Empire Alloys
- Alloy cast and extruded in-house, so composition is controlled from melt to finished part
- Pressure bar gives a secure grip across the full conductor combination of each size
- Hex nut allows correct torque with ordinary tools on site
- Corrosion-resistant copper alloy suited to overhead and outdoor service
- One size covers a wide conductor range, cutting inventory for distributors
Applications
- Overhead distribution line taps
- Service drops
- Earthing and bonding conductors
- Panel and switchyard wiring
- Solar and renewable installations
- Export utility programmes
Materials, plating and packing
Free-cutting brass (CZ121 / IS 319 type) is the default for machined parts; copper, copper alloys, aluminium, gunmetal and steel are also processed in-house. Plating options at Empire Alloys include tin, copper, chrome, nickel and zinc, with shot blasting and nitric wash available as surface treatments.
Parts are packed to suit the shipment: PVC or thermal PVC bags, cartons, shrink-wrap, strapped wooden cases or pallets, with every bag and carton labelled for easy identification.
What to send with your enquiry
- Drawing (PDF/DWG/STEP) or a physical sample, plus the part name or code you use
- Material grade and any standard the part must meet
- Thread type and size, critical dimensions and tolerance
- Finish or plating, quantity per lot and annual requirement
- Packing preference and delivery location (India or export)
Frequently asked questions
Which conductor sizes do your split bolts cover?
The MM² series runs from 6 mm² (ESBC-6) to 300 mm² (ESBC-300). STR-SOL and UL-pattern split bolts are listed by conductor range; send your conductor combination and we will suggest the size.
Can split bolts join copper to aluminium conductors?
Copper-alloy split bolts are designed for copper conductors. For aluminium or mixed joints we recommend our aluminium split bolts or bimetallic connectors.
Do you supply tin-plated split bolts?
Yes. Plating is done to order; tin, copper and nickel plating are all available.
Related products

Brass Split Bolt Connector
Machined brass split bolts for grounding, splicing and light-duty taps.
View details →
Split Bolt Line Tap Connectors
Split bolts used to tap branch conductors from a running line.
View details →
Aluminium Split Bolts
Aluminium split bolts in V-box and round designs for aluminium conductors.
View details →

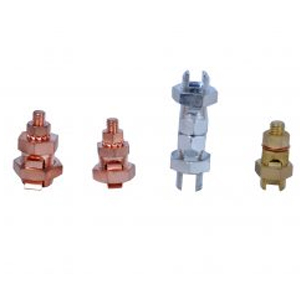

Service Post Connectors
